Setscrew Locking Standard Duty Cylindrical Ball Bearing Insert
$27.52

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and has a cylindrical OD for using with a cylindrically bored housing or frame. This insert is not self-aligning.

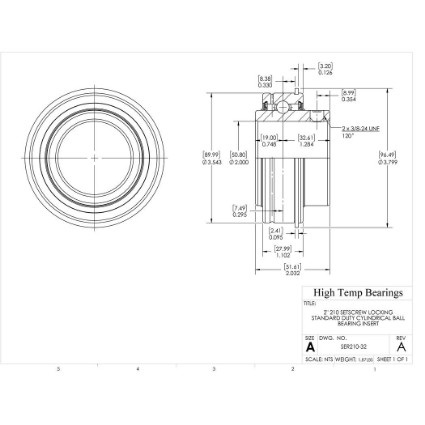

2D and 3D files are available for download For drawings and 3D models, click on a part number.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code111084
Shaft Size2"
SeriesSER
CollarSetscrew
GreasableRe-lubricationGreasable
ConstructionCylindrical
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

Dimensions

Attribute nameAttribute value
Bore (in)2
D (in)3.543
B (in)2.032
S (in)0.748
C (in)1.102
h (in)0.295
S1(in)1.284
G (in)0.354
ds3/8-24 UNF
P (in)3.799
R (in)0.33
J (in)0.126
A (in)0.0949

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic Load Capacity7884
C0 (lb)Static Load Capacity5211

Mass

Attribute nameAttribute value
Weight(lbs)1.87

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
