1-1/2"Narrow Setscrew Locking Tap Base Mounted Bearing|High Temp Bearings

Picture of Narrow Setscrew Locking Tap Base Pillow Block

Narrow Setscrew Locking Tap Base Mounted Bearing

$42.70

Qty:

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle light to moderate loads, moderate speed, and vibration. All bearings are equipped with close tolerance metal shields, an internal NBR contact seal (K-type), and factory lubricated with an ISO VG 100 PAO base oil, NLGI No. 2, lithium-stearate thickened grease. They are narrower than the standard duty configuration but have similar capacity.

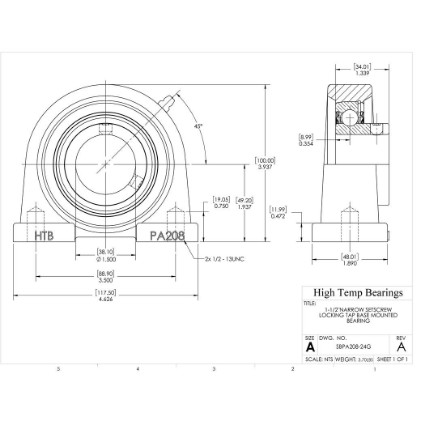

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		110364
Shaft Size		1-1/2"
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		SBPA-G
Construction		Tap Base
Sealing		K-type
End Cap		None
Collar		Setscrew
Greasable	Re-lubrication	Greasable

Dimensions

Attribute name		Attribute value
Bore (in)		1.5
H (in)		1.937
L (in)		4.626
J (in)		3.5
H1 (in)		0.472
H2 (in)		3.937
A (in)		1.89
S (in)		0.354
B (in)		1.339
F (in)		0.75

Mass

Attribute name		Attribute value
Weight(lbs)		3.7

Mounting Information

Attribute name		Attribute value
Bolt		1/2 - 13 UNC

Associated Products

Attribute name		Attribute value
Bearing Insert		SB208-24G
Housing		PA208
