15/16" Setscrew Locking Greaseable Narrow Ball Bearing Insert|High Temp Bearings

Picture of Narrow, Setscrew Locking, Greaseable, Ball Bearing Insert

Setscrew Locking Greaseable Narrow Ball Bearing Insert

$10.07

This product has a minimum quantity of 2

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD

Specifications:

Description

Uses two set screws on the bearing inner race that are tightened to grip the shaft to achieve a secure hold and installs into a standard housing for a narrower overall assembly.

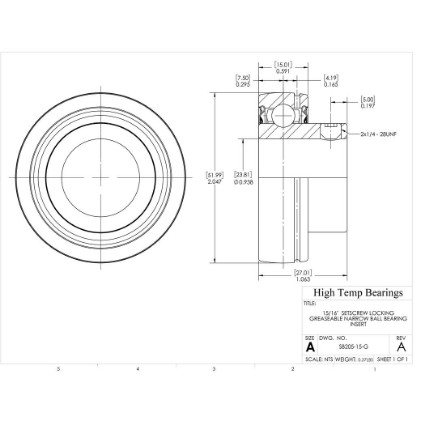

For drawings and 3D models, click on a part number.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		111301
Shaft Size		15/16"
Series		SB-G
Collar		Setscrew
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA

Dimensions

Attribute name		Attribute value
Bore (in)		0.9375
D (in)		2.047
B (in)		1.063
S (in)		0.295
C (in)		0.591
h (in)		0.165
G (in)		0.197
ds		1/4-28 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	3150
C0 (lb)	Static Load Capacity	1771

Mass

Attribute name		Attribute value
Weight(lbs)		0.37

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
