S2000 Mounted Spherical Roller Bearings
>
90mm S2000 Non Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-90MMRSN
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-90MMRSN
S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$1,416.40
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
90mm

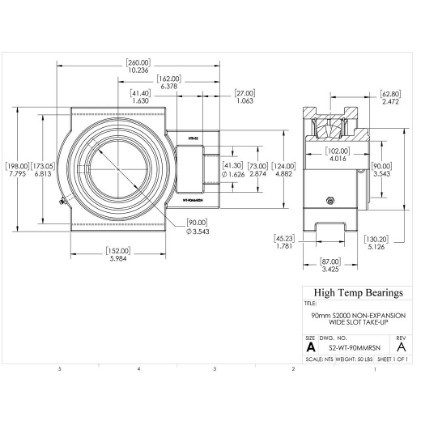

A (mm)
260
B (mm)
87
C (mm)
198
D (mm)
130.2
E (mm)
173.05
Bolt
41.3
H (mm)
162
J (mm)
152
K (mm)
73
L (mm)
102
M (mm)
41.4
P (mm)
124
S (mm)
45.23
Co (lb)
83180
Weight(lbs)
50
Code
105529
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
90
G (mm)
27
T (mm)
68.8
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1560
Max RPM-Metal Labyrinth Seal
1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
