Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-70MMRSN

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-70MMRSN

S2000 Non-Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$1,014.38
EA

checkbox icon This item ship within 24 hours.

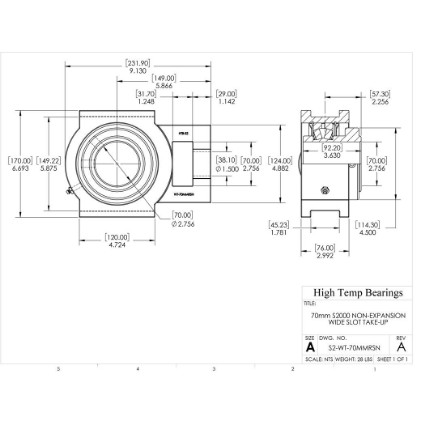

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size70mm
A (mm)231.9
B (mm)76
C (mm)170
D (mm)114.3
E (mm)149.22
Bolt38.1
H (mm)149
J (mm)120
K (mm)70
L (mm)92.2
M (mm)31.7
P (mm)124
S (mm)45.23
Co (lb)52830
Weight(lbs)28
Code105513
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)70
G (mm)29
T (mm)63.3
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2040
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
