Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>

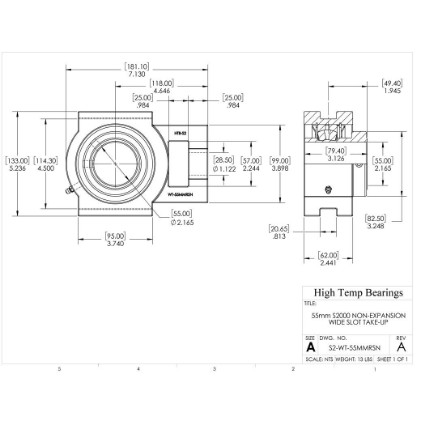

55mm S2000 Non Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-55MMRSN
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-55MMRSN
S2000 Non-Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$582.31
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
55mm
A (mm)
181.1
B (mm)
62
C (mm)
133
D (mm)
82.5
E (mm)
114.3
Bolt
28.5
H (mm)
118
J (mm)
95
K (mm)
57
L (mm)
79.4
M (mm)
25
P (mm)
99
S (mm)
20.65
Co (lb)
28100
Weight(lbs)
13
Code
105497
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
55
G (mm)
25
T (mm)
55.4
C (lb)
23600
Max RPM-Triple Lip Seal
2000
Max RPM-PTFE Seal
2700
Max RPM-Metal Labyrinth Seal
2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
