High Temperature S2000 Wide Slot Take Up Flange: S2-WT-50MMTSN-KX

High Temperature S2000 Wide Slot Take Up Flange: S2-WT-50MMTSN-KX

High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$573.37
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD

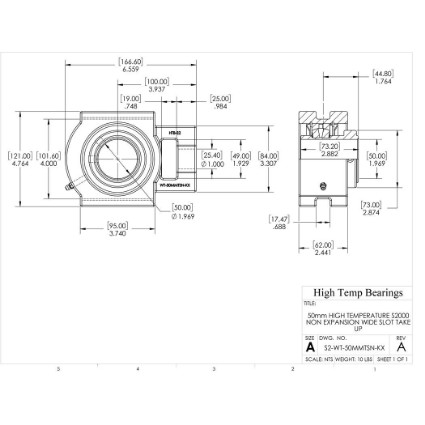

Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size50mm
A (mm)166.6
B (mm)62
C (mm)121
D (mm)73
E (mm)101.6
Bolt25.4
H (mm)100
J (mm)95
K (mm)49
L (mm)73.2
M (mm)19
P (mm)84
S (mm)17.47
Co (lb)24730
Weight(lbs)10
Code105637
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)50
G (mm)25
T (mm)50.8
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
