Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-350RSN

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-350RSN

S2000 Non-Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$1,416.40
EA

checkbox icon This item ship within 24 hours.

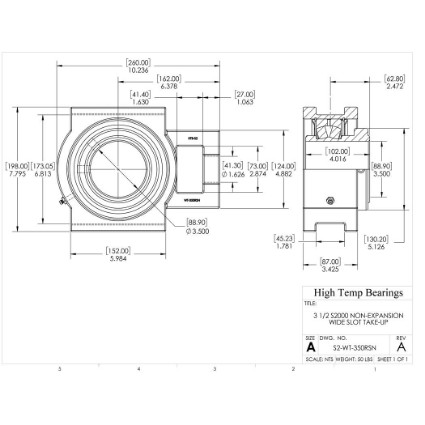

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3-1/2"
A (mm)260
B (mm)87
C (mm)198
D (mm)130.2
E (mm)173.05
Bolt41.3
H (mm)162
J (mm)152
K (mm)73
L (mm)102
M (mm)41.4
P (mm)124
S (mm)45.23
Co (lb)83180
Weight(lbs)50
Code105527
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)88.9
G (mm)27
T (mm)68.8
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1560
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
