High Temperature S2000 Wide Slot Take Up Flange: S2-WT-250TSN-KX

High Temperature S2000 Wide Slot Take Up Flange: S2-WT-250TSN-KX

High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$751.75
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105701
Shaft Size2-1/2"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar

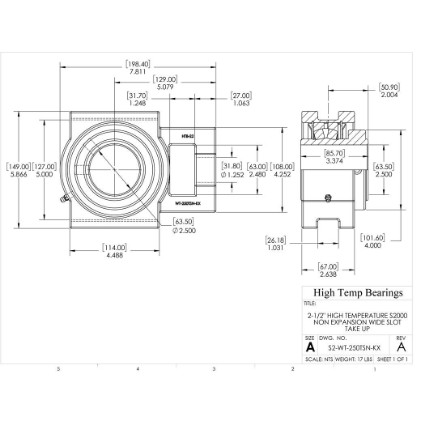

Dimensions
Attribute nameAttribute value
Bore (mm)63.5
A (mm)198.4
B (mm)67
C (mm)149
D (mm)101.6
E (mm)127
G (mm)27
H (mm)129
J (mm)114
K (mm)63
L (mm)85.7
M (mm)31.7
P (mm)108
S (mm)26.18
T (mm)56.9
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity37090
Co (lb)Static load capacity46090
Mass
Attribute nameAttribute value
Weight(lbs)17
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot Bolt31.8
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1700
Max RPM-PTFE SealLimiting speed2160
Max RPM-Metal Labyrinth SealLimiting speed2300
