Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-250RSN

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-250RSN

S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$661.06
EA

checkbox icon This item typically ship in 1-4 weeks.

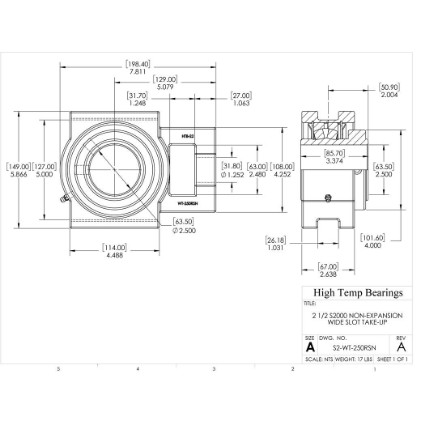

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-1/2"
A (mm)198.4
B (mm)67
C (mm)149
D (mm)101.6
E (mm)127
Bolt31.8
H (mm)129
J (mm)114
K (mm)63
L (mm)85.7
M (mm)31.7
P (mm)108
S (mm)26.18
Co (lb)46090
Weight(lbs)17
Code105505
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)63.5
G (mm)27
T (mm)56.9
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2160
Max RPM-Metal Labyrinth Seal2300
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
