Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
2-1/2" S2000 Expansion Wide Slot Take Up Heavy Duty Bearing
Print Page
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-250RSE
Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-250RSE
S2000 Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$661.06
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL

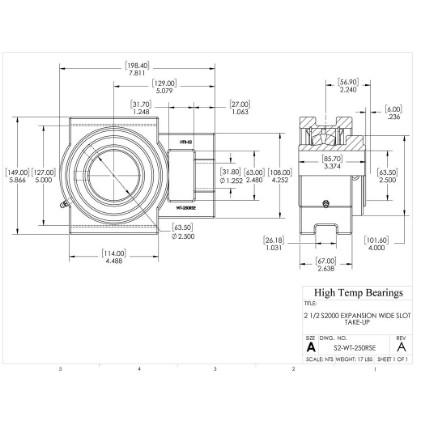

Specifications:
metric
Attribute name
Attribute value
Construction
Wide Slot Take-Up
Type
Expansion
Collar
Single Locking Collar
Shaft Size
2-1/2"
A (mm)
198.4
B (mm)
67
C (mm)
149
D (mm)
101.6
E (mm)
127
Bolt
31.8
H (mm)
129
J (mm)
114
K (mm)
63
L (mm)
85.7
M (mm)
31.7
P (mm)
108
S (mm)
26.18
Co (lb)
46090
Weight(lbs)
17
Code
105504
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
63.5
G (mm)
27
T (mm)
56.9
X (mm)
6
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2160
Max RPM-Metal Labyrinth Seal
2300
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
