Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-244RSN

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-244RSN

S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$434.95

checkbox icon This item typically ship in 1-4 weeks.

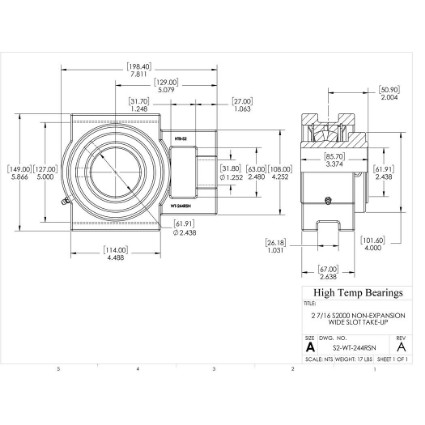

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING
Product Information
Attribute nameAttribute value
Code105503
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-7/16"
Dimensions
Attribute nameAttribute value
Bore (mm)61.9125
A (mm)198.4
B (mm)67
C (mm)149
D (mm)101.6
E (mm)127
G (mm)27
H (mm)129
J (mm)114
K (mm)63
L (mm)85.7
M (mm)31.7
P (mm)108
S (mm)26.18
T (mm)56.9
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity37090
Co (lb)Static load capacity46090
Mass
Attribute nameAttribute value
Weight(lbs)17
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot Bolt31.8
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1700
Max RPM-PTFE SealLimiting speed2160
Max RPM-Metal Labyrinth SealLimiting speed2300
