Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-219RSE

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-219RSE

S2000 Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$582.31
EA

checkbox icon This item ship within 24 hours.

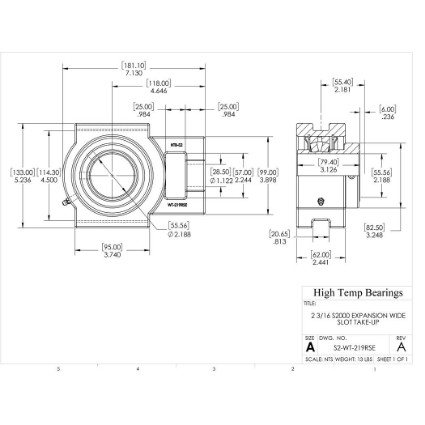

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeExpansion
CollarSingle Locking Collar
Shaft Size2-3/16"
A (mm)181.1
B (mm)62
C (mm)133
D (mm)82.5
E (mm)114.3
Bolt28.5
H (mm)118
J (mm)95
K (mm)57
L (mm)79.4
M (mm)25
P (mm)99
S (mm)20.65
Co (lb)28100
Weight(lbs)13
Code105498
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)55.5625
G (mm)25
T (mm)55.4
X (mm)6
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2700
Max RPM-Metal Labyrinth Seal2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
