High Temperature S2000 Wide Slot Take Up Flange: S2-WT-200TSN-KX

High Temperature S2000 Wide Slot Take Up Flange: S2-WT-200TSN-KX

High Temperature S2000 Non Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$547.52
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105635
Shaft Size2"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar

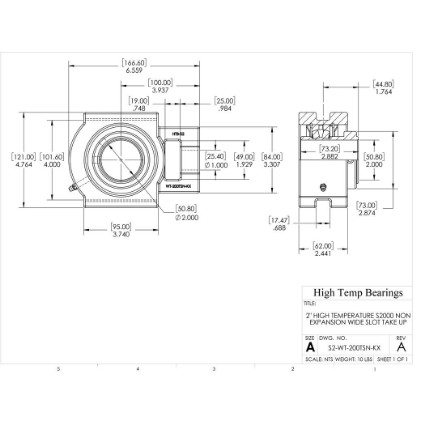

Dimensions
Attribute nameAttribute value
Bore (mm)50.8
A (mm)166.6
B (mm)62
C (mm)121
D (mm)73
E (mm)101.6
G (mm)25
H (mm)100
J (mm)95
K (mm)49
L (mm)73.2
M (mm)19
P (mm)84
S (mm)17.47
T (mm)50.8
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity20230
Co (lb)Static load capacity24730
Mass
Attribute nameAttribute value
Weight(lbs)10
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot Bolt25.4
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2225
Max RPM-PTFE SealLimiting speed3180
Max RPM-Metal Labyrinth SealLimiting speed3150
