Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-194RSN

Heavy Duty S2000 Wide Slot Take Up Flange: S2-WT-194RSN

S2000 Non-Expansion Wide Slot Take Up Flange Mounted Spherical Roller Bearing
$522.21
EA

checkbox icon This item ship within 24 hours.

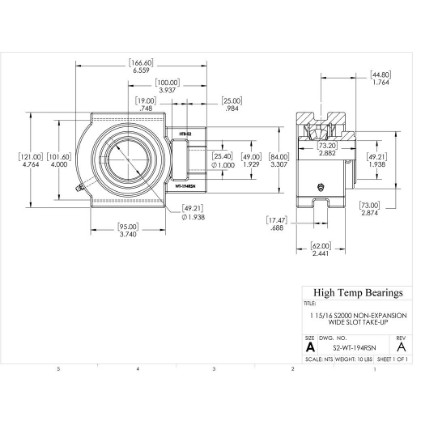

CAD
Specifications:
Attribute nameAttribute value
ConstructionWide Slot Take-Up
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size1-15/16"
A (mm)166.6
B (mm)62
C (mm)121
D (mm)73
E (mm)101.6
Bolt25.4
H (mm)100
J (mm)95
K (mm)49
L (mm)73.2
M (mm)19
P (mm)84
S (mm)17.47
Co (lb)24730
Weight(lbs)10
Code105491
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)49.2125
G (mm)25
T (mm)50.8
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
