High Temperature S2000 Piloted Flange: S2-FCF-90MMTSE-KX

High Temperature S2000 Piloted Flange: S2-FCF-90MMTSE-KX

High Temperature S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

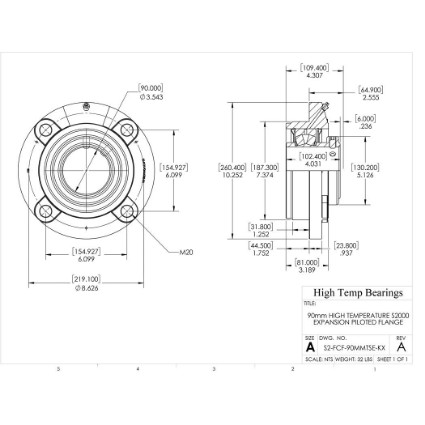

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size90mm
Dismount Thread7/16-14 UNC
A (mm)260.4
B (mm)81
C (mm)23.8
D (mm)130.2
BoltM20
G (mm)64.9
H (mm)31.8
K (mm)44.5
L (mm)102.4
M (mm)154.9
Z (mm)187.3
Co (lb)83180
Weight(lbs)32
Code105530
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)90
E (mm)219.1
T (mm)109.4
X (mm)6
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
