High Temperature S2000 Piloted Flange: S2-FCF-60MMTSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-60MMTSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$713.71
EA

checkbox icon This item ship within 24 hours.

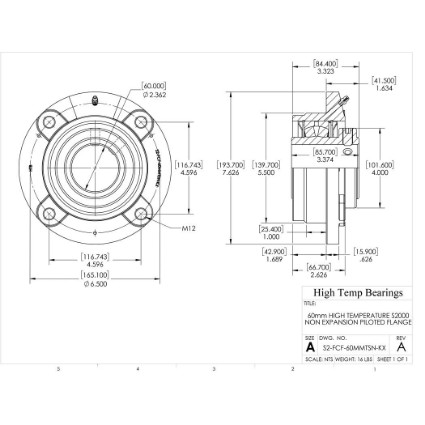

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size60mm
Dismount Thread7/16-14 UNC
A (mm)193.7
B (mm)66.7
C (mm)15.9
D (mm)101.6
BoltM12
G (mm)47.5
H (mm)25.4
K (mm)42.9
L (mm)85.7
M (mm)116.7
Z (mm)139.7
Co (lb)46090
Weight(lbs)16
Code105697
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)60
E (mm)165.1
T (mm)90.4
C (lb)37090
Max RPM-Triple Lip Seal1700
Max RPM-PTFE Seal2360
Max RPM-Metal Labyrinth Seal2360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
