60mm S2000 Non Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 Piloted Flange: S2-FCF-60MMRSN
Heavy Duty S2000 Piloted Flange: S2-FCF-60MMRSN

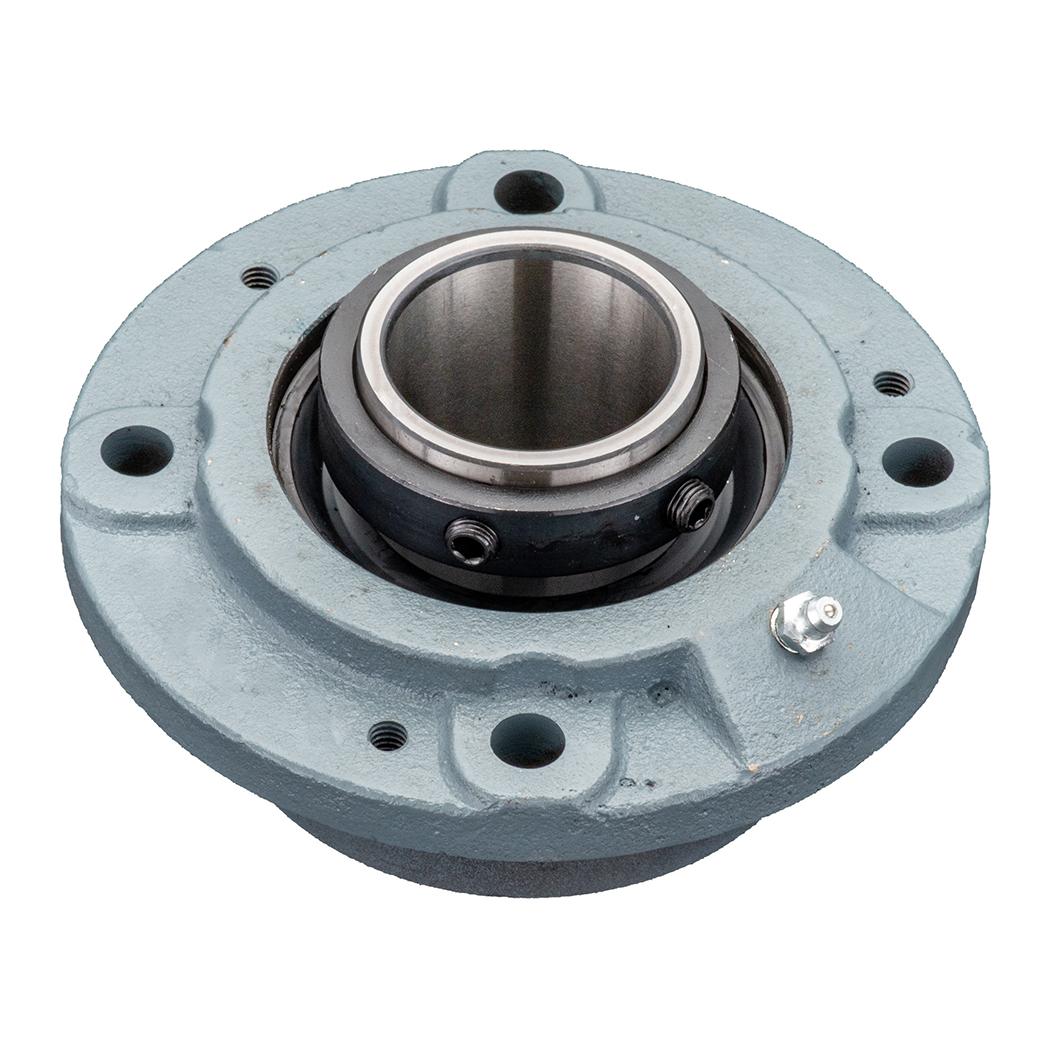

S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$661.06
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
60mm
Dismount Thread
7/16-14 UNC

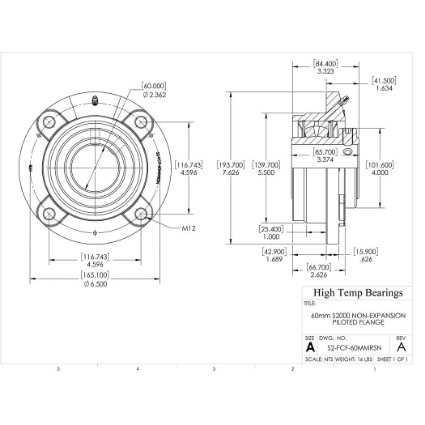

A (mm)
193.7
B (mm)
66.7
C (mm)
15.9
D (mm)
101.6
Bolt
M12
G (mm)
47.5
H (mm)
25.4
K (mm)
42.9
L (mm)
85.7
M (mm)
116.7
Z (mm)
139.7
Co (lb)
46090
Weight(lbs)
16
Code
105455
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
60
E (mm)
165.1
T (mm)
90.4
C (lb)
37090
Max RPM-Triple Lip Seal
1700
Max RPM-PTFE Seal
2360
Max RPM-Metal Labyrinth Seal
2360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
