Heavy Duty S2000 Piloted Flange: S2-FCF-55MMRSN

Heavy Duty S2000 Piloted Flange: S2-FCF-55MMRSN

S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$582.31
EA

checkbox icon This item ship within 24 hours.

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size55mm
Dismount Thread5/16-18 UNC

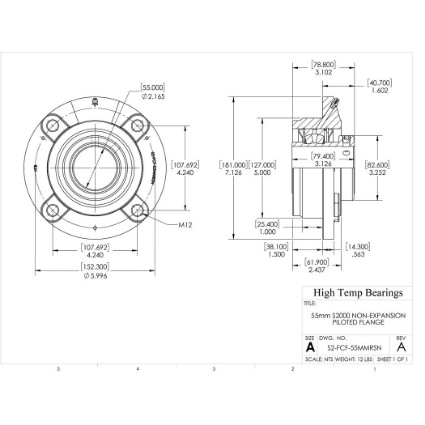

A (mm)181
B (mm)61.9
C (mm)14.3
D (mm)82.6
BoltM12
G (mm)46.7
H (mm)25.4
K (mm)38.1
L (mm)79.4
M (mm)107.8
Z (mm)127
Co (lb)28100
Weight(lbs)12
Code105451
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)55
E (mm)152.3
T (mm)84.8
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2800
Max RPM-Metal Labyrinth Seal2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
