High Temperature S2000 Piloted Flange: S2-FCF-400TSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-400TSN-KX

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$2,289.27
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Product Information
Attribute nameAttribute value
Code105887
Shaft Size4"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

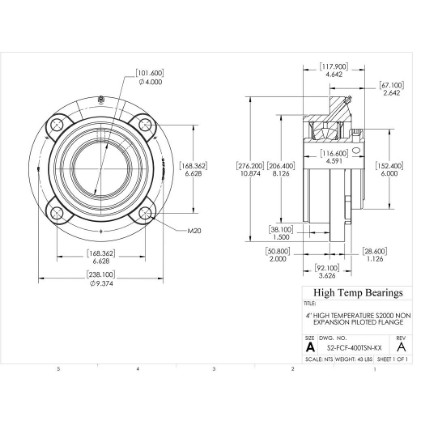

Dimensions
Attribute nameAttribute value
Bore (mm)101.6
A (mm)276.2
B (mm)92.1
C (mm)28.6
D (mm)152.4
E (mm)238.1
G (mm)74.1
H (mm)38.1
K (mm)50.8
L (mm)116.6
M (mm)168.4
T (mm)124.9
Z (mm)206.4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity84300
Co (lb)Static load capacity112400
Mass
Attribute nameAttribute value
Weight(lbs)43
Mounting Information
Attribute nameAttribute value
Dismount Thread1/2-13 UNC
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1100
Max RPM-PTFE SealLimiting speed1350
Max RPM-Metal Labyrinth SealLimiting speed1350
