Heavy Duty S2000 Piloted Flange: S2-FCF-394RSN

Heavy Duty S2000 Piloted Flange: S2-FCF-394RSN

S2000 Non-Expansion Piloted Flange Mounted Spherical Roller Bearing
$2,027.73
EA

checkbox icon This item ship within 24 hours.

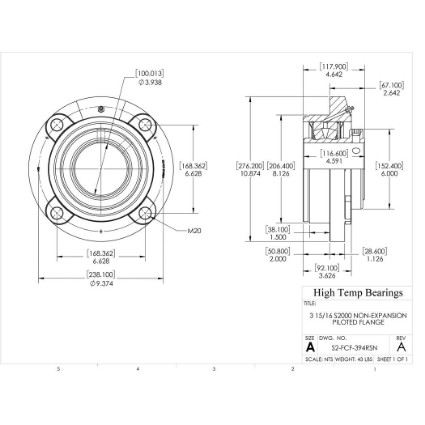

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3-15/16"
Dismount Thread1/2-13 UNC
A (mm)276.2
B (mm)92.1
C (mm)28.6
D (mm)152.4
BoltM20
G (mm)74.1
H (mm)38.1
K (mm)50.8
L (mm)116.6
M (mm)168.4
Z (mm)206.4
Co (lb)112400
Weight(lbs)43
Code105487
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)100.0125
E (mm)238.1
T (mm)124.9
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
