Heavy Duty S2000 Piloted Flange: S2-FCF-30MMRSN

Heavy Duty S2000 Piloted Flange: S2-FCF-30MMRSN

S2000 Non-Expansion Piloted Flange Mounted Spherical Roller Bearing
$440.36
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD

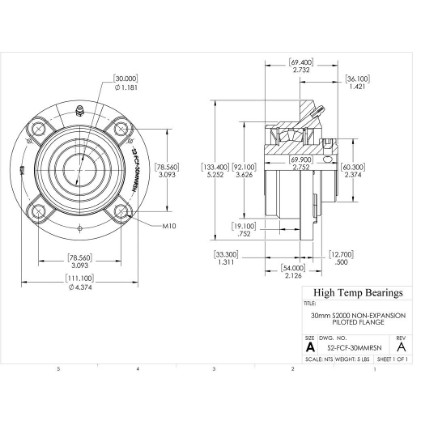

Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size30mm
Dismount Thread5/16-18 UNC
A (mm)133.4
B (mm)54
C (mm)12.7
D (mm)60.3
BoltM10
G (mm)40.1
H (mm)19.1
K (mm)33.3
L (mm)69.9
M (mm)78.6
Z (mm)92.1
Co (lb)20230
Weight(lbs)5
Code105429
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)30
E (mm)111.1
T (mm)73.4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
