High Temperature S2000 Mounted Spherical Roller Bearings
>
2-15/16" High Temperature S2000 Expansion Piloted Flange Heavy Duty Bearing
Print Page

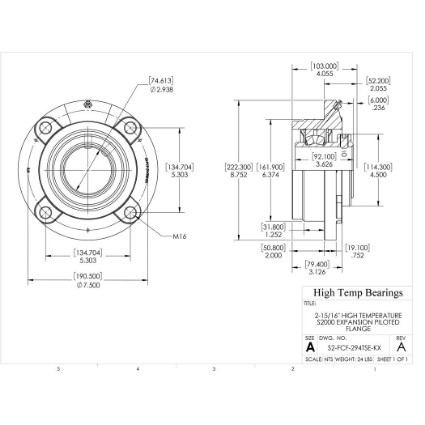

High Temperature S2000 Piloted Flange: S2-FCF-294TSE-KX
High Temperature S2000 Piloted Flange: S2-FCF-294TSE-KX
High Temperature S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,077.09
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
2-15/16"
Dismount Thread
7/16-14 UNC
A (mm)
222.3
B (mm)
79.4
C (mm)
19.1
D (mm)
114.3
Bolt
M16
G (mm)
52.2
H (mm)
31.8
K (mm)
50.8
L (mm)
92.1
M (mm)
134.7
Z (mm)
161.9
Co (lb)
52830
Weight(lbs)
24
Code
105740
PackageQTY
1
UOM
EA
Series
S2000-KX
Bore (mm)
74.6125
E (mm)
190.5
T (mm)
103
X (mm)
6
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
