Heavy Duty S2000 Piloted Flange: S2-FCF-294RSN

Heavy Duty S2000 Piloted Flange: S2-FCF-294RSN

S2000 Non-Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,007.13
EA

checkbox icon This item ship within 24 hours.

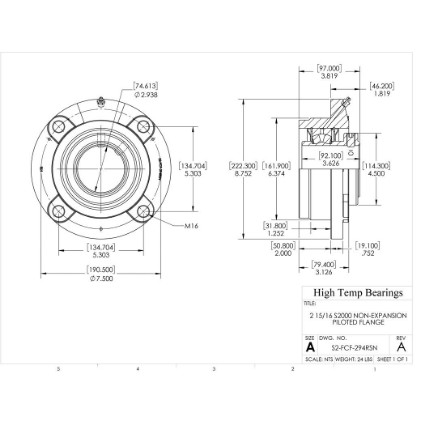

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-15/16"
Dismount Thread7/16-14 UNC
A (mm)222.3
B (mm)79.4
C (mm)19.1
D (mm)114.3
BoltM16
G (mm)52.2
H (mm)31.8
K (mm)50.8
L (mm)92.1
M (mm)134.7
Z (mm)161.9
Co (lb)52830
Weight(lbs)24
Code105469
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)74.6125
E (mm)190.5
T (mm)103
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
