Heavy Duty S2000 Piloted Flange: S2-FCF-275RSN

Heavy Duty S2000 Piloted Flange: S2-FCF-275RSN

S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$673.71
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105465
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-3/4"

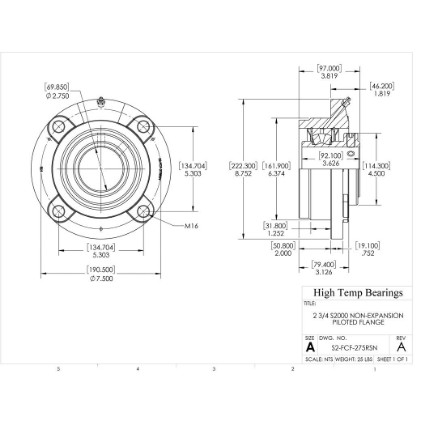

Dimensions
Attribute nameAttribute value
Bore (mm)69.85
A (mm)222.3
B (mm)79.4
C (mm)19.1
D (mm)114.3
E (mm)190.5
G (mm)52.2
H (mm)31.8
K (mm)50.8
L (mm)92.1
M (mm)134.7
T (mm)103
Z (mm)161.9
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity41590
Co (lb)Static load capacity52830
Mass
Attribute nameAttribute value
Weight(lbs)25
Mounting Information
Attribute nameAttribute value
Dismount Thread7/16-14 UNC
BoltRecommended Foot BoltM16
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1500
Max RPM-PTFE SealLimiting speed2150
Max RPM-Metal Labyrinth SealLimiting speed2150
