High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$616.83

checkbox icon This item typically ship in 1-4 weeks.

CAD

Specifications:

Description

Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code105653
Shaft Size2-3/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar

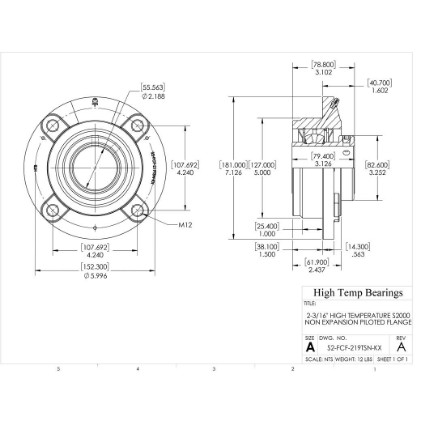

Dimensions

Attribute nameAttribute value
Bore (mm)55.5625
A (mm)181
B (mm)61.9
C (mm)14.3
D (mm)82.6
E (mm)152.3
G (mm)46.7
H (mm)25.4
K (mm)38.1
L (mm)79.4
M (mm)107.8
T (mm)84.8
Z (mm)127

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic load capacity23600
Co (lb)Static load capacity28100

Mass

Attribute nameAttribute value
Weight(lbs)12

Mounting Information

Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM12

Safe Loads

Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2000
Max RPM-PTFE SealLimiting speed2800
Max RPM-Metal Labyrinth SealLimiting speed2800
