High Temperature S2000 Piloted Flange: S2-FCF-200TSE-KX

High Temperature S2000 Piloted Flange: S2-FCF-200TSE-KX

High Temperature S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
$573.37
EA

checkbox icon This item ship within 24 hours.

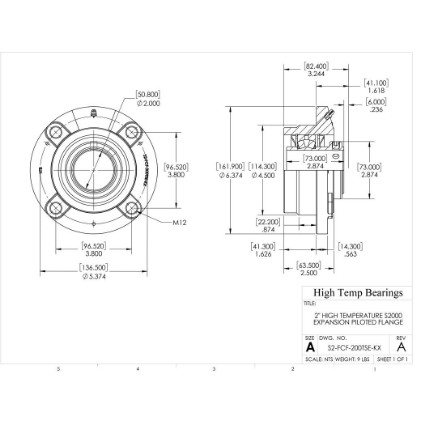

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size2"
Dismount Thread5/16-18 UNC
A (mm)161.9
B (mm)63.5
C (mm)14.3
D (mm)73
BoltM12
G (mm)41.1
H (mm)22.2
K (mm)41.3
L (mm)73
M (mm)96.5
Z (mm)114.3
Co (lb)24730
Weight(lbs)9
Code105630
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)50.8
E (mm)136.5
T (mm)82.4
X (mm)6
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
