1-15/16" S2000 Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 Piloted Flange: S2-FCF-194RSE
Heavy Duty S2000 Piloted Flange: S2-FCF-194RSE

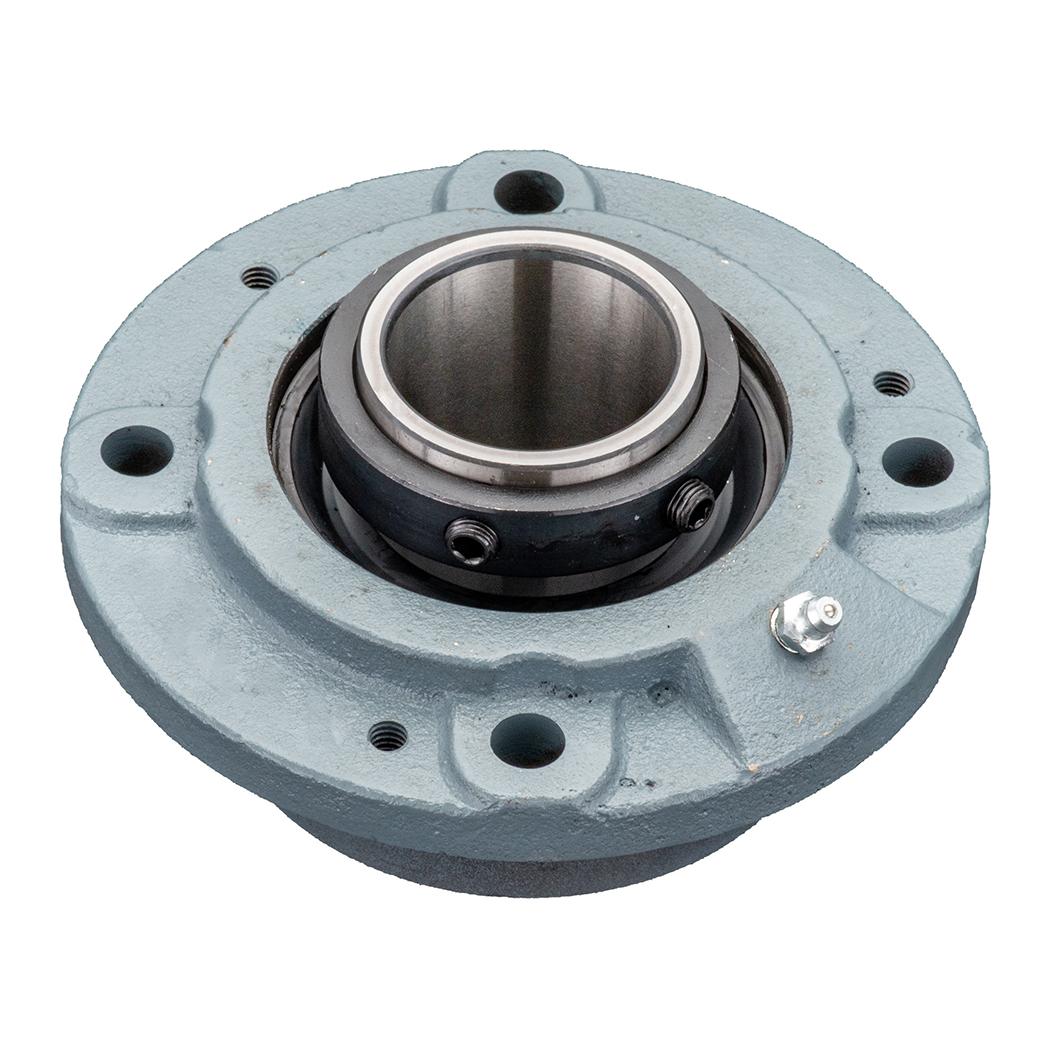

S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
$330.42
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Product Information
Attribute name
Attribute value
Code
105444
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
S2000
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
1-15/16"

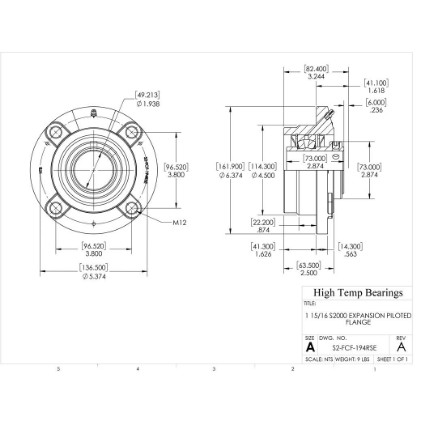

Dimensions
Attribute name
Attribute value
Bore (mm)
49.2125
A (mm)
161.9
B (mm)
63.5
C (mm)
14.3
D (mm)
73
E (mm)
136.5
G (mm)
41.1
H (mm)
22.2
K (mm)
41.3
L (mm)
73
M (mm)
96.5
T (mm)
82.4
X (mm)
6
Z (mm)
114.3
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
20230
Co (lb)
Static load capacity
24730
Mass
Attribute name
Attribute value
Weight(lbs)
9
Mounting Information
Attribute name
Attribute value
Dismount Thread
5/16-18 UNC
Bolt
Recommended Foot Bolt
M12
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
2225
Max RPM-PTFE Seal
Limiting speed
3180
Max RPM-Metal Labyrinth Seal
Limiting speed
3180
