Heavy Duty S2000 Piloted Flange: S2-FCF-169RSE

Heavy Duty S2000 Piloted Flange: S2-FCF-169RSE

S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
$485.95
EA

checkbox icon This item ship within 24 hours.

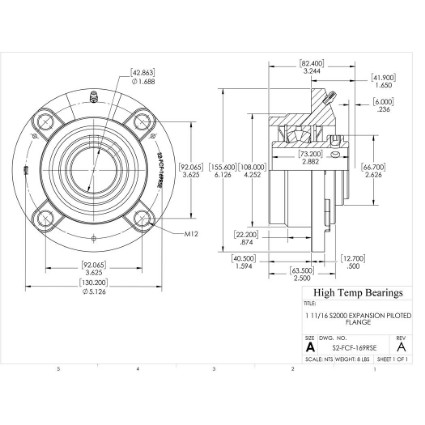

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-11/16"
Dismount Thread5/16-18 UNC
A (mm)155.6
B (mm)63.5
C (mm)12.7
D (mm)66.7
BoltM12
G (mm)41.9
H (mm)22.2
K (mm)40.5
L (mm)73.2
M (mm)92
Z (mm)108
Co (lb)21360
Weight(lbs)8
Code105438
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)42.8625
E (mm)130.2
T (mm)82.4
X (mm)6
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
