S2000 Mounted Spherical Roller Bearings
>
1-1/2" S2000 Non Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 Piloted Flange: S2-FCF-150RSN
Heavy Duty S2000 Piloted Flange: S2-FCF-150RSN
S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$292.54
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS1
Manual
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105435
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
S2000
Construction
Piloted Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-1/2"

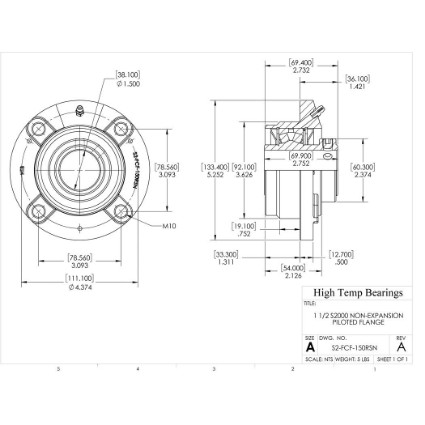

Dimensions
Attribute name
Attribute value
Bore (mm)
38.1
A (mm)
133.4
B (mm)
54
C (mm)
12.7
D (mm)
60.3
E (mm)
111.1
G (mm)
40.1
H (mm)
19.1
K (mm)
33.3
L (mm)
69.9
M (mm)
78.6
T (mm)
73.4
Z (mm)
92.1
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
17540
Co (lb)
Static load capacity
20230
Mass
Attribute name
Attribute value
Weight(lbs)
5
Mounting Information
Attribute name
Attribute value
Dismount Thread
5/16-18 UNC
Bolt
Recommended Foot Bolt
M10
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
2750
Max RPM-PTFE Seal
Limiting speed
3600
Max RPM-Metal Labyrinth Seal
Limiting speed
3600
