Heavy Duty S2000 Piloted Flange: S2-FCF-150RSE

Heavy Duty S2000 Piloted Flange: S2-FCF-150RSE

S2000 Expansion Piloted Flange Mounted Spherical Roller Bearing
$440.36
EA

checkbox icon This item ship within 24 hours.

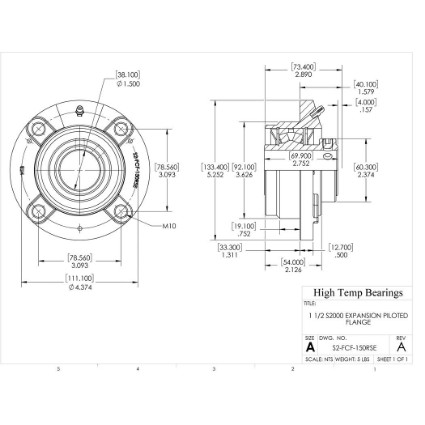

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-1/2"
Dismount Thread5/16-18 UNC
A (mm)133.4
B (mm)54
C (mm)12.7
D (mm)60.3
BoltM10
G (mm)40.1
H (mm)19.1
K (mm)33.3
L (mm)69.9
M (mm)78.6
Z (mm)92.1
Co (lb)20230
Weight(lbs)5
Code105434
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)38.1
E (mm)111.1
T (mm)73.4
X (mm)4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
