High Temperature S2000 Piloted Flange: S2-FCF-100MMTSN-KX

High Temperature S2000 Piloted Flange: S2-FCF-100MMTSN-KX

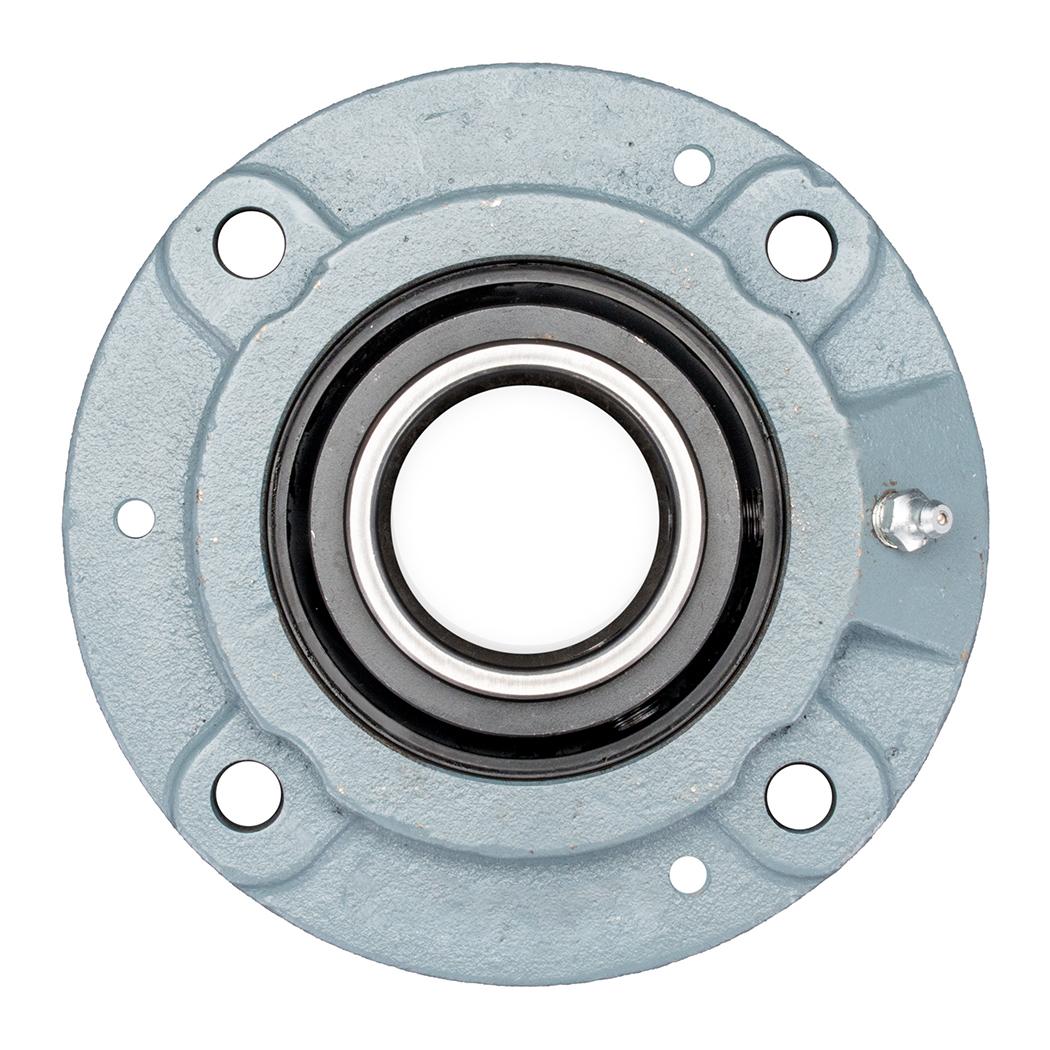

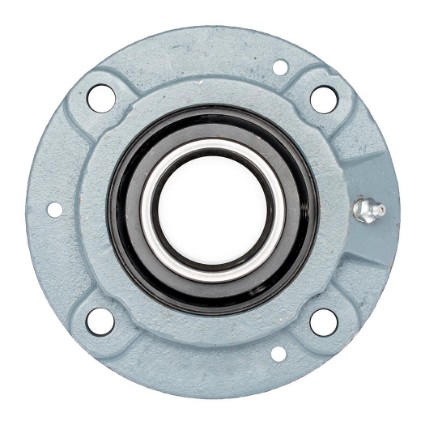

High Temperature S2000 Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$2,180.26
EA

checkbox icon This item ship within 24 hours.

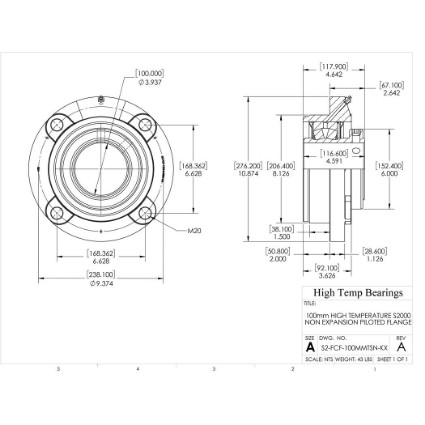

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size100mm
Dismount Thread1/2-13 UNC
A (mm)276.2
B (mm)92.1
C (mm)28.6
D (mm)152.4
BoltM20
G (mm)74.1
H (mm)38.1
K (mm)50.8
L (mm)116.6
M (mm)168.4
Z (mm)206.4
Co (lb)112400
Weight(lbs)43
Code105885
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)100
E (mm)238.1
T (mm)124.9
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
