Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>

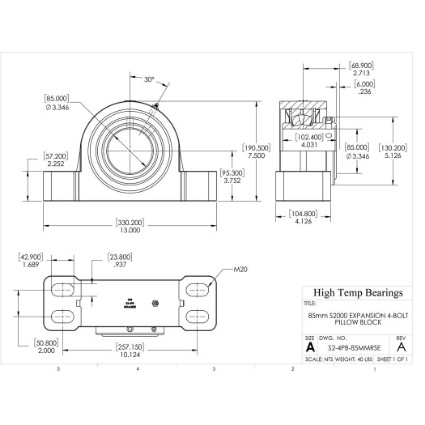

85mm S2000 Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty S2000 4 Bolt Pillow Block: S2-4PB-85MMRSE
Heavy Duty S2000 4 Bolt Pillow Block: S2-4PB-85MMRSE
S2000 Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,348.02
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Expansion
Collar
Single Locking Collar
Shaft Size
85mm
A (mm)
330.2
B (mm)
104.8
D (mm)
130.2
E (mm)
50.8
Bolt
M20
G (mm)
42.9
H (mm)
95.3
J (mm)
190.5
K (mm)
23.8
L (mm)
102.4
M Min (mm)
238.1
M Max (mm)
276.2
Co (lb)
83180
Weight(lbs)
40
Code
105336
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
85
C (mm)
57.2
T (mm)
68.9
X (mm)
6
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1600
Max RPM-Metal Labyrinth Seal
1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
