Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
5" S2000 Double Locking Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page

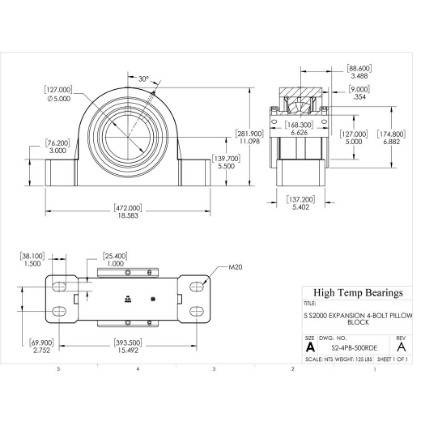

Heavy Duty Double Collar S2000 4 Bolt Pillow Block: S2-4PB-500RDE
Heavy Duty Double Collar S2000 4 Bolt Pillow Block: S2-4PB-500RDE

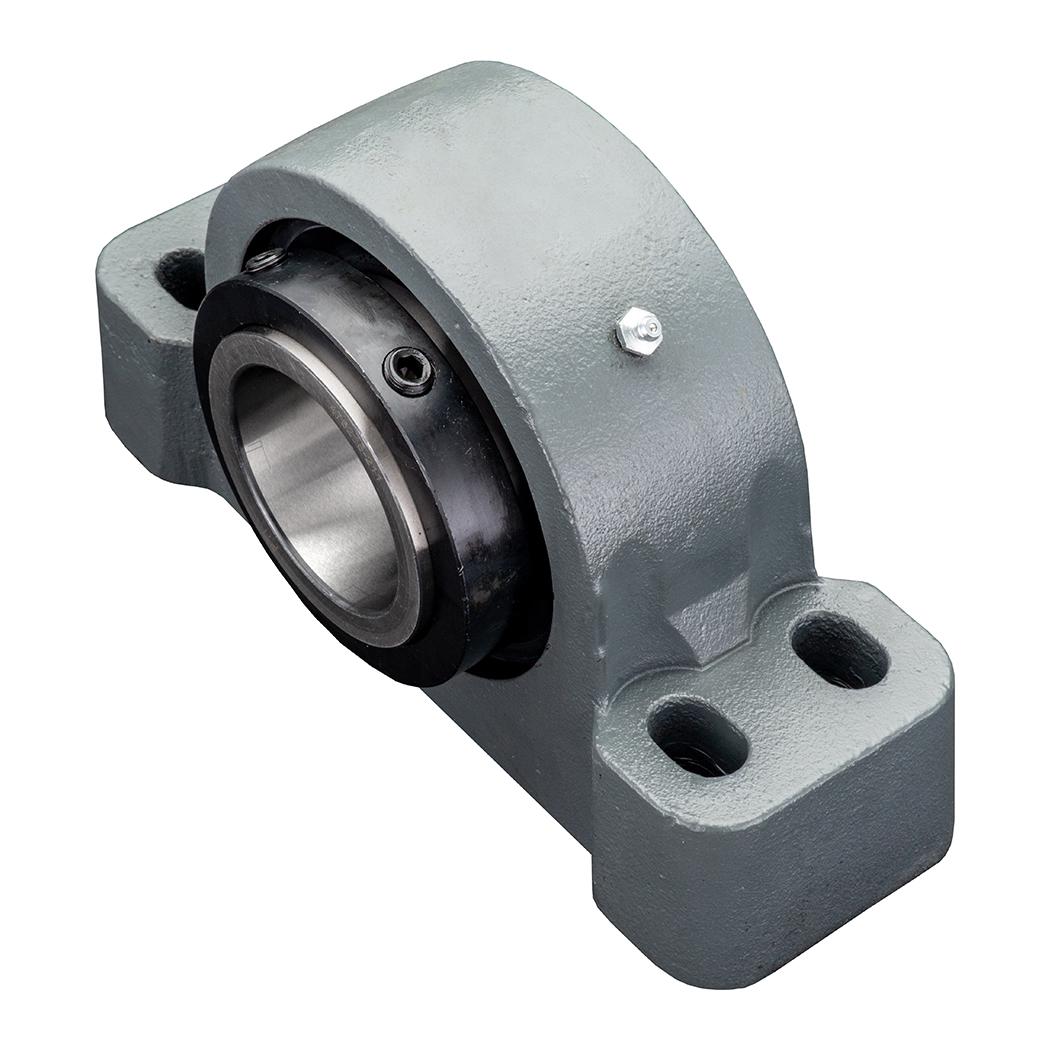

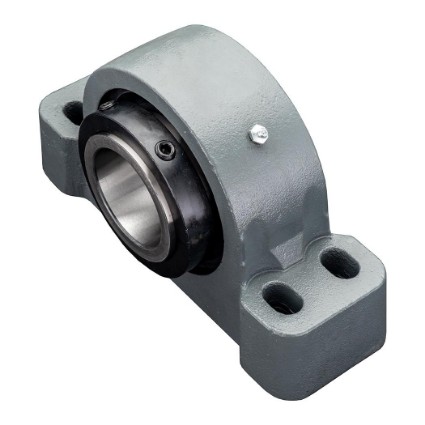

S2000 Double Collar Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$4,789.04
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Expansion
Collar
Double Locking Collar
Shaft Size
5"
A (mm)
472
B (mm)
137.2
D (mm)
174.8
E (mm)
69.9
Bolt
M20
G (mm)
38.1
H (mm)
139.7
J (mm)
281.9
K (mm)
25.4
L1 (mm)
168.3
M Min (mm)
381
M Max (mm)
406
Co (lb)
185470
Weight(lbs)
125
Code
105364
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
127
C (mm)
76.2
T (mm)
88.6
X (mm)
9
C (lb)
128140
Max RPM-Triple Lip Seal
900
Max RPM-PTFE Seal
1020
Max RPM-Metal Labyrinth Seal
1020
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
