High Temperature Double Collar S2000 4 Bolt Pillow Block: S2-4PB-444TDN-KX

High Temperature Double Collar S2000 4 Bolt Pillow Block: S2-4PB-444TDN-KX

High Temperature S2000 Double Collar Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$2,568.55
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. Double collar units provide increased grip on the shaft. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105893
Shaft Size4-7/16"
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000-KX
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarDouble Locking Collar

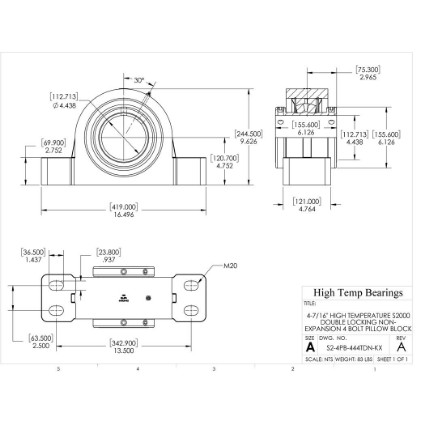

Dimensions
Attribute nameAttribute value
Bore (mm)112.7125
A (mm)419
B (mm)121
C (mm)69.9
D (mm)155.6
E (mm)63.5
G (mm)36.5
H (mm)120.7
J (mm)244.5
K (mm)23.8
L1 (mm)155.6
M Min (mm)330.2
M Max (mm)355.6
T (mm)82.3
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity94420
Co (lb)Static load capacity134890
Mass
Attribute nameAttribute value
Weight(lbs)83
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1040
Max RPM-PTFE SealLimiting speed1200
Max RPM-Metal Labyrinth SealLimiting speed1200
