High Temperature S2000 4 Bolt Pillow Block: S2-4PB-400TSN-KX

High Temperature S2000 4 Bolt Pillow Block: S2-4PB-400TSN-KX

High Temperature S2000 Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$2,075.82
EA

checkbox icon This item ship within 24 hours.

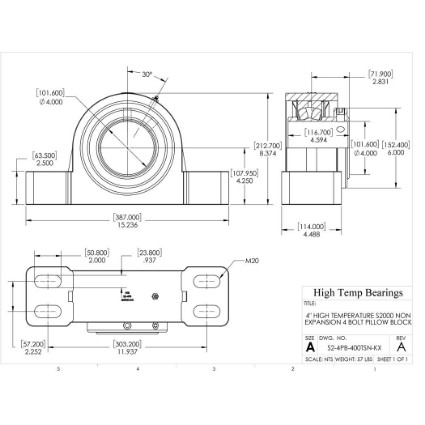

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size4"
A (mm)387
B (mm)114
D (mm)152.4
E (mm)57.2
BoltM20
G (mm)50.8
H (mm)107.95
J (mm)212.7
K (mm)23.8
L (mm)116.7
M Min (mm)276.2
M Max (mm)330.2
Co (lb)112400
Weight(lbs)57
Code105868
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)101.6
C (mm)63.5
T (mm)78.9
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
