High Temperature Double Collar S2000 4 Bolt Pillow Block: S2-4PB-344TDN-KX

High Temperature Double Collar S2000 4 Bolt Pillow Block: S2-4PB-344TDN-KX

High Temperature S2000 Double Collar Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,638.47
EA

checkbox icon This item typically ship in 1-4 weeks.

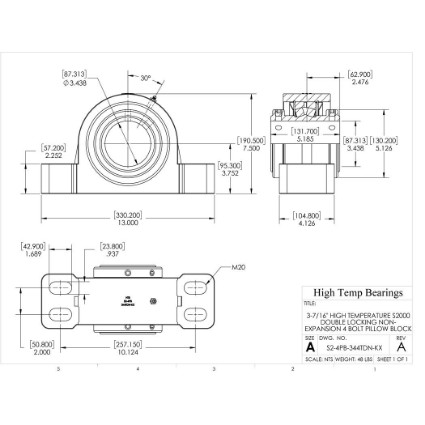

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarDouble Locking Collar
Shaft Size3-7/16"
A (mm)330.2
B (mm)104.8
D (mm)130.2
E (mm)50.8
BoltM20
G (mm)42.9
H (mm)95.3
J (mm)190.5
K (mm)23.8
L1 (mm)131.7
M Min (mm)238.1
M Max (mm)276.2
Co (lb)83180
Weight(lbs)48
Code105856
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)87.3125
C (mm)57.2
T (mm)68.9
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. Double collar units provide increased grip on the shaft. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
