Heavy Duty Double Collar S2000 4 Bolt Pillow Block: S2-4PB-344RDN

Heavy Duty Double Collar S2000 4 Bolt Pillow Block: S2-4PB-344RDN

S2000 Double Collar Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,541.78
EA

checkbox icon This item ship within 24 hours.

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarDouble Locking Collar
Shaft Size3-7/16"

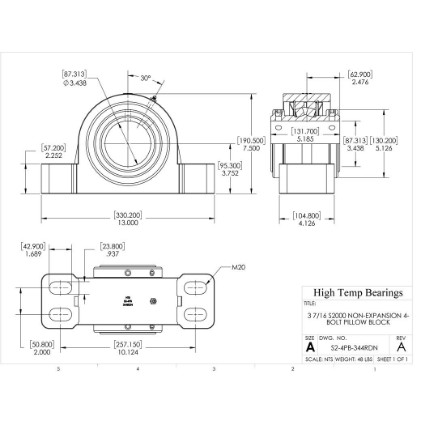

A (mm)330.2
B (mm)104.8
D (mm)130.2
E (mm)50.8
BoltM20
G (mm)42.9
H (mm)95.3
J (mm)190.5
K (mm)23.8
L1 (mm)131.7
M Min (mm)238.1
M Max (mm)276.2
Co (lb)83180
Weight(lbs)48
Code105339
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)87.3125
C (mm)57.2
T (mm)68.9
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
