Heavy Duty S2000 4 Bolt Flange: S2-4BF-90MMRSN

Heavy Duty S2000 4 Bolt Flange: S2-4BF-90MMRSN

S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$940.97

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealBIGBEARING
Product Information
Attribute nameAttribute value
Code105421
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size90mm

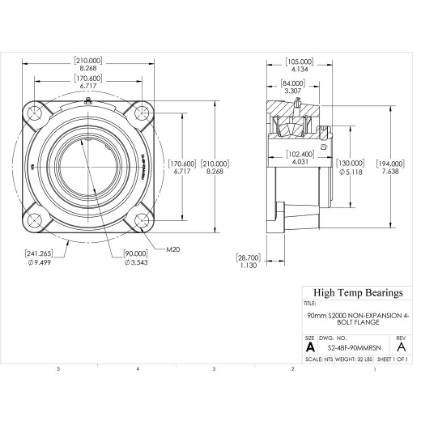

Dimensions
Attribute nameAttribute value
Bore (mm)90
A (mm)210
B (mm)84
C (mm)111
D (mm)130
E (mm)170.6
H (mm)28.7
J (mm)194
K (mm)241
L (mm)102.4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)32
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
