High Temperature S2000 4 Bolt Flange: S2-4BF-85MMTSN-KX

High Temperature S2000 4 Bolt Flange: S2-4BF-85MMTSN-KX

High Temperature S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,506.82
EA

checkbox icon This item ship within 24 hours.

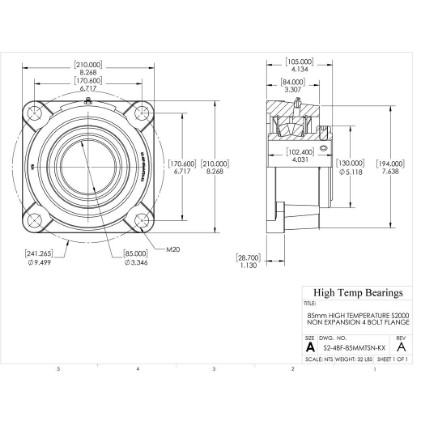

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size85mm
A (mm)210
B (mm)84
C (mm)111
D (mm)130
E (mm)170.6
BoltM20
H (mm)28.7
J (mm)194
K (mm)241
L (mm)102.4
Co (lb)83180
Weight(lbs)32
Code105835
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)85
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
