Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>
70mm S2000 Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 4 Bolt Flange: S2-4BF-70MMRSN
Heavy Duty S2000 4 Bolt Flange: S2-4BF-70MMRSN

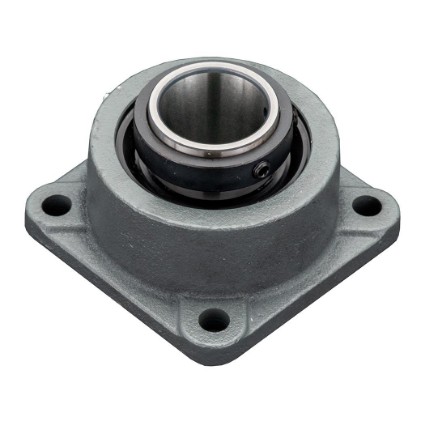

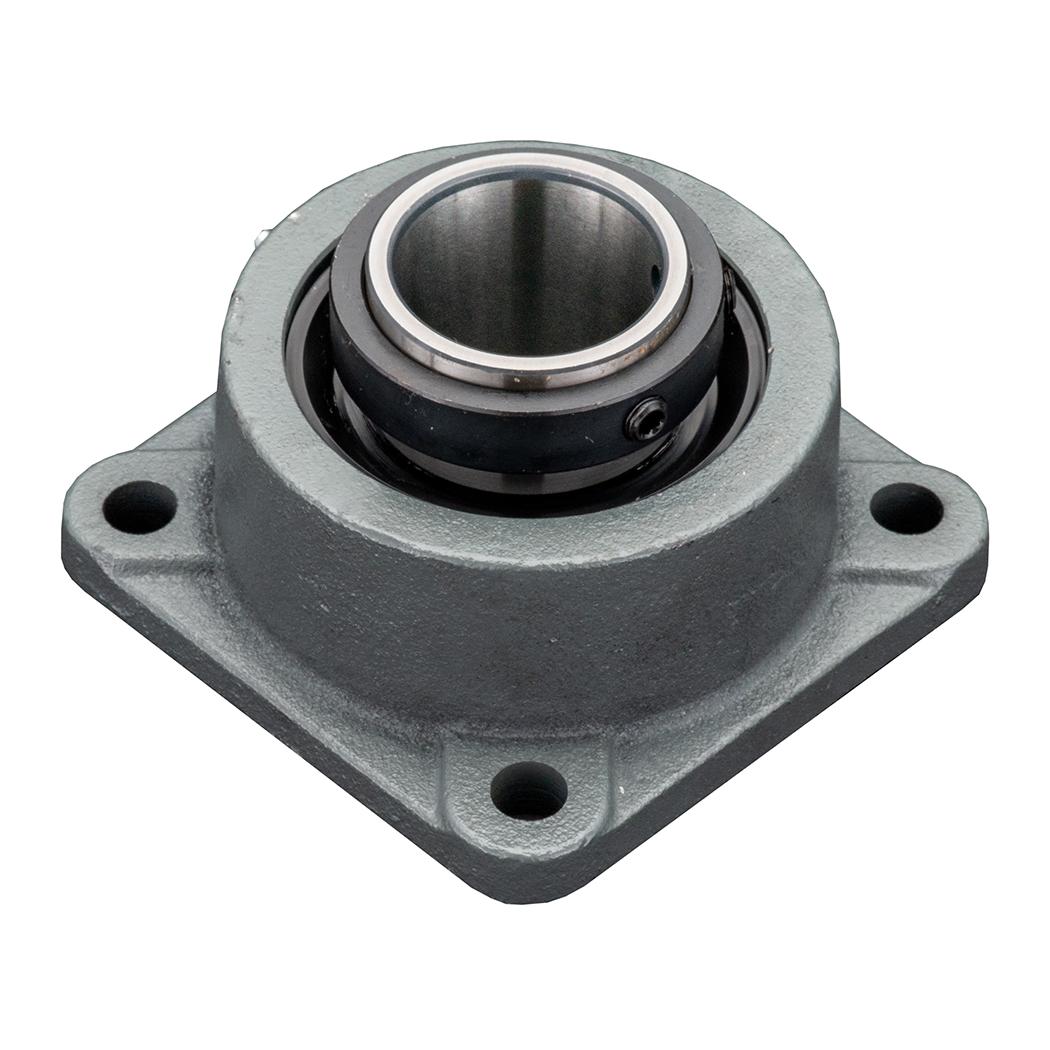

S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,014.38
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.

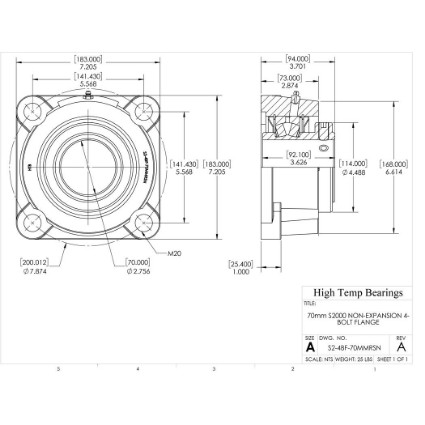

CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
70mm
A (mm)
183
B (mm)
73
C (mm)
100
D (mm)
114
E (mm)
141.43
Bolt
M20
H (mm)
25.4
J (mm)
168
K (mm)
200
L (mm)
92.1
Co (lb)
52830
Weight(lbs)
25
Code
105405
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
70
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
