S2000 Mounted Spherical Roller Bearings
>
65mm S2000 Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 4 Bolt Flange: S2-4BF-65MMRSN
Heavy Duty S2000 4 Bolt Flange: S2-4BF-65MMRSN
S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$439.12
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Daily Shipping Deal
Free shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute name
Attribute value
Code
105399
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
S2000
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
65mm

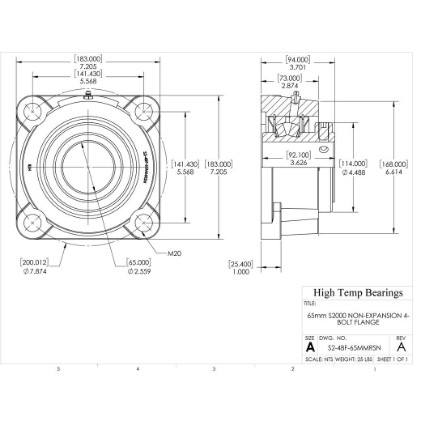

Dimensions
Attribute name
Attribute value
Bore (mm)
65
A (mm)
183
B (mm)
73
C (mm)
100
D (mm)
114
E (mm)
141.43
H (mm)
25.4
J (mm)
168
K (mm)
200
L (mm)
92.1
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
41590
Co (lb)
Static load capacity
52830
Mass
Attribute name
Attribute value
Weight(lbs)
25
Mounting Information
Attribute name
Attribute value
Bolt
Recommended Foot Bolt
M20
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1500
Max RPM-PTFE Seal
Limiting speed
2150
Max RPM-Metal Labyrinth Seal
Limiting speed
2150
