Heavy Duty S2000 4 Bolt Flange: S2-4BF-55MMRSE

Heavy Duty S2000 4 Bolt Flange: S2-4BF-55MMRSE

S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$582.31
EA

checkbox icon This item ship within 24 hours.

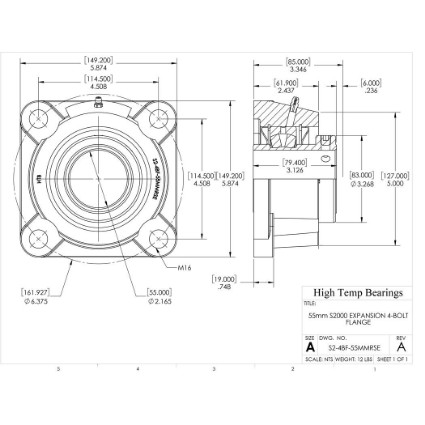

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size55mm
A (mm)149.2
B (mm)61.9
C (mm)85
D (mm)83
E (mm)114.5
BoltM16
H (mm)19
J (mm)127
K (mm)162
L (mm)79.4
Co (lb)28100
Weight(lbs)12
Code105388
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)55
X (mm)6
C (lb)23600
Max RPM-Triple Lip Seal2000
Max RPM-PTFE Seal2800
Max RPM-Metal Labyrinth Seal2800
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
