Heavy Duty S2000 4 Bolt Flange: S2-4BF-50MMRSN

Heavy Duty S2000 4 Bolt Flange: S2-4BF-50MMRSN

S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$350.47

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING
Product Information
Attribute nameAttribute value
Code105385
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesS2000
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size50mm

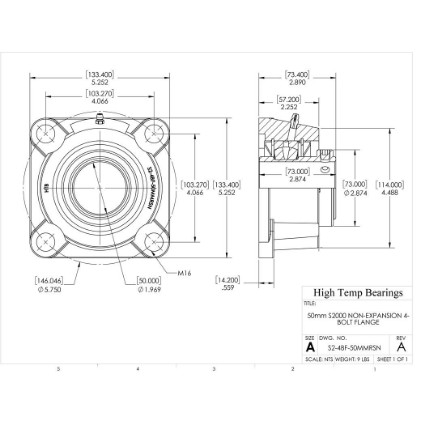

Dimensions
Attribute nameAttribute value
Bore (mm)50
A (mm)133.4
B (mm)57.2
C (mm)79.4
D (mm)73
E (mm)103.27
H (mm)14.2
J (mm)114
K (mm)146
L (mm)73
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity20230
Co (lb)Static load capacity24730
Mass
Attribute nameAttribute value
Weight(lbs)9
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM16
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2225
Max RPM-PTFE SealLimiting speed3180
Max RPM-Metal Labyrinth SealLimiting speed3180
