Home
>
Heavy Duty Mounted Bearings
>
S2000 Mounted Spherical Roller Bearings
>

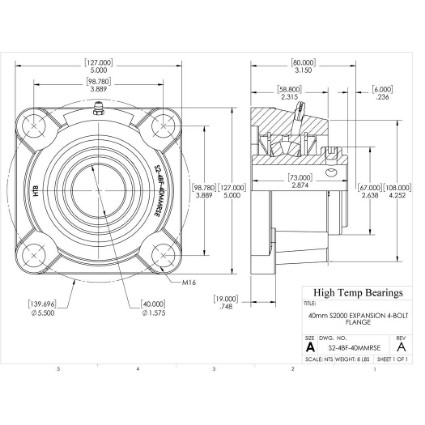

40mm S2000 Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty S2000 4 Bolt Flange: S2-4BF-40MMRSE
Heavy Duty S2000 4 Bolt Flange: S2-4BF-40MMRSE
S2000 Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$496.31
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
40mm
A (mm)
127
B (mm)
58.8
C (mm)
80
D (mm)
67
E (mm)
98.78
Bolt
M16
H (mm)
19
J (mm)
108
K (mm)
140
L (mm)
73
Co (lb)
21360
Weight(lbs)
8
Code
105374
PackageQTY
1
UOM
EA
Series
S2000
Bore (mm)
40
X (mm)
6
C (lb)
17980
Max RPM-Triple Lip Seal
2425
Max RPM-PTFE Seal
3360
Max RPM-Metal Labyrinth Seal
3360
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
