Heavy Duty S2000 4-Bolt Flange: S2-4BF-400RSN

Heavy Duty S2000 4-Bolt Flange: S2-4BF-400RSN

S2000 Non-Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$2,057.77
EA

checkbox icon This item ship within 24 hours.

CAD

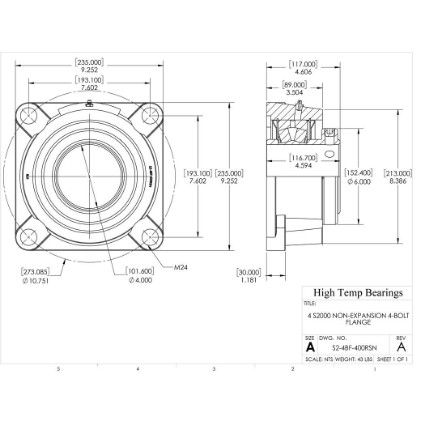

Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size4"
A (mm)235
B (mm)89
C (mm)124
D (mm)152.4
E (mm)193.1
BoltM24
H (mm)30
J (mm)213
K (mm)273
L (mm)116.7
Co (lb)112400
Weight(lbs)43
Code105427
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)101.6
X (mm)7
C (lb)84300
Max RPM-Triple Lip Seal1100
Max RPM-PTFE Seal1350
Max RPM-Metal Labyrinth Seal1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
