Heavy Duty S2000 4 Bolt Flange: S2-4BF-350RSN

Heavy Duty S2000 4 Bolt Flange: S2-4BF-350RSN

S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,416.40
EA

checkbox icon This item typically ship in 1-4 weeks.

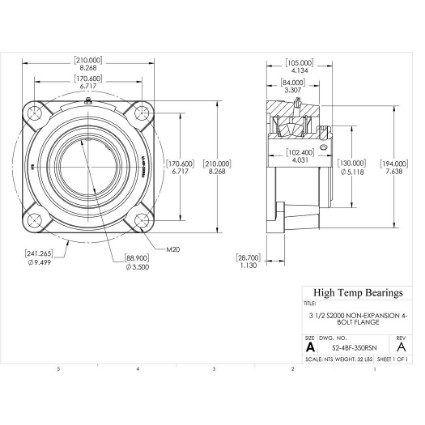

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3-1/2"
A (mm)210
B (mm)84
C (mm)111
D (mm)130
E (mm)170.6
BoltM20
H (mm)28.7
J (mm)194
K (mm)241
L (mm)102.4
Co (lb)83180
Weight(lbs)32
Code105419
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)88.9
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
