High Temperature S2000 4 Bolt Flange: S2-4BF-30MMTSN-KX

High Temperature S2000 4 Bolt Flange: S2-4BF-30MMTSN-KX

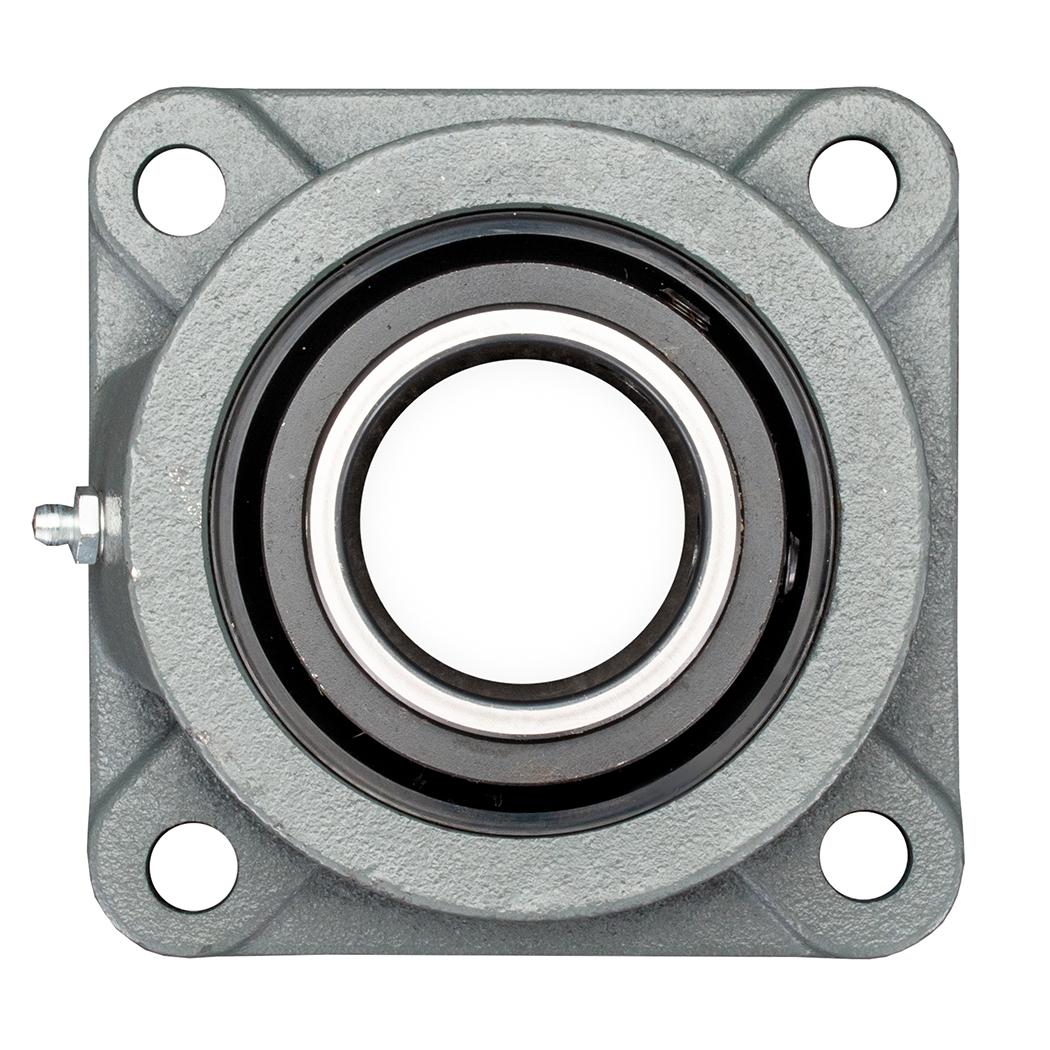

High Temperature S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$481.98
EA

checkbox icon This item typically ship in 1-4 weeks.

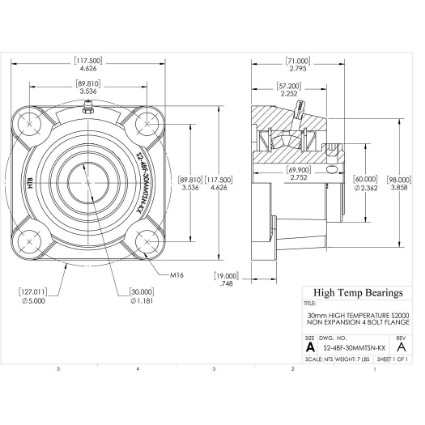

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size30mm
A (mm)117.5
B (mm)57.2
C (mm)75
D (mm)60
E (mm)89.81
BoltM16
H (mm)19
J (mm)98
K (mm)127
L (mm)69.9
Co (lb)20230
Weight(lbs)7
Code105550
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)30
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
