High Temperature S2000 4 Bolt Flange: S2-4BF-300TSN-KX

High Temperature S2000 4 Bolt Flange: S2-4BF-300TSN-KX

High Temperature S2000 Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,084.70
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:

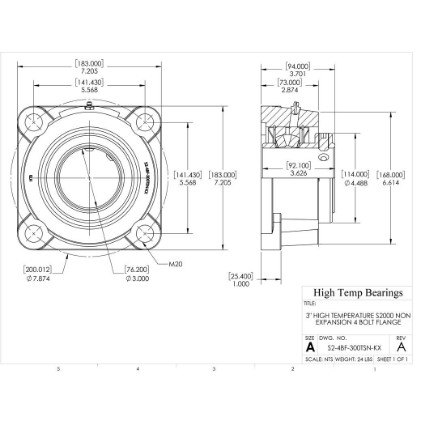

Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size3"
A (mm)183
B (mm)73
C (mm)100
D (mm)114
E (mm)141.43
BoltM20
H (mm)25.4
J (mm)168
K (mm)200
L (mm)92.1
Co (lb)52830
Weight(lbs)24
Code105762
PackageQTY1
UOMEA
SeriesS2000-KX
Bore (mm)76.2
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
