Heavy Duty S2000 4-Bolt Flange: S2-4BF-275RSN

Heavy Duty S2000 4-Bolt Flange: S2-4BF-275RSN

S2000 Non-Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$1,014.38
EA

checkbox icon This item ship within 24 hours.

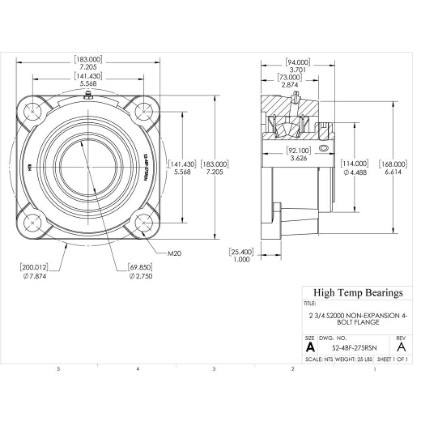

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-3/4"
A (mm)183
B (mm)73
C (mm)100
D (mm)114
E (mm)141.43
BoltM20
H (mm)25.4
J (mm)168
K (mm)200
L (mm)92.1
Co (lb)52830
Weight(lbs)25
Code105403
PackageQTY1
UOMEA
SeriesS2000
Bore (mm)69.85
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
